Material Selection for PCB Spring Thimbles

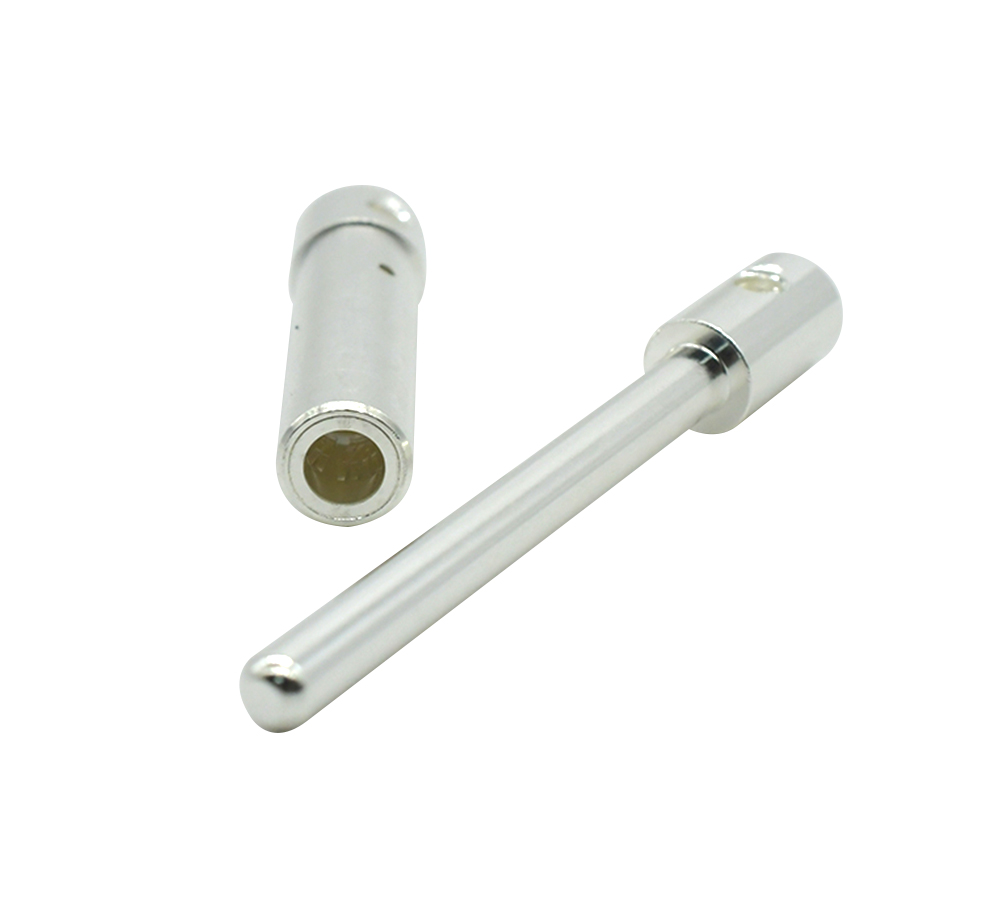

　　The material selection for PCB spring thimbles is a critical aspect that significantly impacts their performance, durability, and electrical conductivity. The main components of a PCB spring thimble typically include the plunger, barrel, and spring, each of which requires careful material consideration.

　　For the plunger, beryllium copper is a popular choice. Beryllium copper offers an excellent combination of high strength, good electrical conductivity, and remarkable wear resistance. When heat - treated, its mechanical properties are further enhanced, making it suitable for applications where the plunger repeatedly makes contact with other components. For example, in high - frequency testing of PCBs, the plunger needs to maintain a stable and reliable connection under continuous use. The wear - resistant property of beryllium copper ensures that the contact surface of the plunger does not degrade quickly, thus guaranteeing consistent electrical performance over an extended period.

　　The barrel of the PCB spring thimble is often made of phosphor bronze. Phosphor bronze has good formability, which allows for precise manufacturing of the barrel's shape. It also has relatively high electrical conductivity, which is essential for efficient signal and current transmission. Additionally, phosphor bronze exhibits good corrosion resistance, protecting the internal components of the spring thimble from environmental factors such as moisture and chemicals. In a humid industrial environment, the corrosion - resistant property of the phosphor - bronze barrel helps to prevent oxidation and ensure the long - term reliability of the spring thimble.

　　The spring within the PCB spring thimble is commonly crafted from stainless - steel wire. Stainless steel offers high elasticity and fatigue resistance. The ability to withstand repeated compression and expansion cycles without losing its spring force is crucial for the proper functioning of the spring thimble. In applications where the spring thimble is used in a device that experiences frequent vibrations or mechanical stress, the fatigue - resistant stainless - steel spring can maintain its performance, ensuring a stable connection between components.

　　Surface coatings also play a vital role in material selection. Gold plating is widely applied to the surface of PCB spring thimbles. Gold has excellent electrical conductivity, low contact resistance, and high corrosion resistance. The gold - plated surface reduces the likelihood of oxidation and contamination, improving the electrical connection quality. It is especially beneficial in applications where low - signal - level transmission is involved, such as in sensitive electronic devices. The gold plating not only enhances the electrical performance but also extends the lifespan of the spring thimble by protecting the underlying materials from corrosion.
