Size Specifications of PCB Spring Thimbles

　　PCB spring thimbles come in a wide range of size specifications to meet the diverse needs of different electronic applications. These size specifications are carefully designed to ensure compatibility with various PCB layouts, component sizes, and performance requirements.

　　For the through - hole type of PCB spring thimbles, common size specifications include different diameters for the needle tube and the probe rod. For example, a popular size for the needle tube diameter is 1.02 mm, which provides a balance between space utilization and structural integrity. The probe rod diameter may be 0.74 mm, allowing for a proper fit within the needle tube while still maintaining good electrical contact. The overall length of the through - hole spring thimble can vary significantly, with lengths such as 16.5 mm or 33.3 mm being available. The longer length is suitable for applications where there is a need to reach components on a multi - layer PCB or in a device with a relatively thick structure.

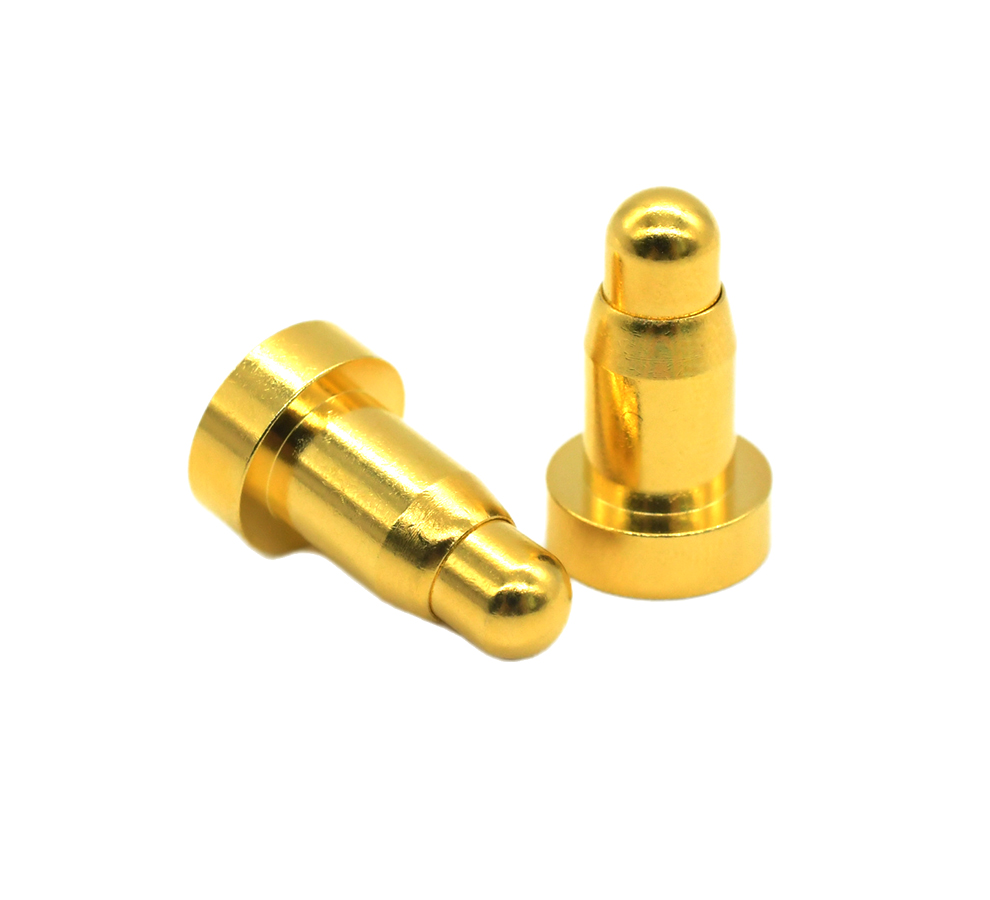

　　In the case of surface - mount PCB spring thimbles, the size specifications are even more critical due to the space - constrained nature of surface - mount technology. The minimum pin spacing for surface - mount spring thimbles can be as small as 0.3 mm, enabling high - density packaging on the PCB. The size of the spring thimble itself, including the diameter of the head and the overall height, is also minimized. For example, the head diameter of a surface - mount spring thimble may be 0.68 mm, and the overall height can be designed to be very low, such as 6.5 mm, to fit within the tight spaces on a surface - mount PCB.

　　The size specifications of PCB spring thimbles also take into account the current - carrying capacity and the mechanical stress they need to withstand. Larger - sized spring thimbles generally have a higher current - carrying capacity. For instance, a spring thimble with a larger cross - sectional area of the conductive parts can handle up to 10 A of current. In terms of mechanical stress, spring thimbles with thicker walls or larger diameters are more suitable for applications where they may be subject to vibrations, shocks, or repeated compression.

　　Moreover, the size specifications are often customized according to specific customer requirements. In some specialized applications, such as in medical devices or high - end aerospace electronics, unique size specifications may be required to meet the strict design and performance criteria. Manufacturers are capable of producing PCB spring thimbles with precise size tolerances, ensuring that each component meets the exact requirements of the application. Whether it's a standard size for mass - production in consumer electronics or a custom - sized spring thimble for a specialized industry, the size specifications play a vital role in determining the effectiveness and reliability of the PCB spring thimble in its intended application.
